[bars] Cobra Ultralite Balun

[Jason Sanroma]

Once it enters the house it goes into a crawl space (cubby hole) and then through the wall into my shack. It goes through a balun but I am not sure the specs of it and I believe it is not suited for this use, but I needed one to use the LDG auto tuner. I will provide some pictures to show what I am talking about.

The pictures show: The balun front and back, I am not sure the type of balun it is. Then, the crawl space where it comes in and then the window line going through the wall after that it shows it coming out of the wall. There are a few other wires that are labeled such as the coax for the Super big stick for 10m, my Diamond X-50A (2m/440) and ethernet. I am not sure if the other lines can affect the VSWR.

73,
Jason
K1NAD

> On Jul 3, 2022, at 9:19 AM, William Smith <w_smith at compusmiths.com> wrote:
>
> Where does it go after it enters the house?
>
> 73, Willie N1JBJ
>
>> On Jul 3, 2022, at 1:03 AM, Jason M. Sanroma - K1NAD <K1NAD at sanroma.net <mailto:K1NAD at sanroma.net>> wrote:
>>
>> Hello,
>>
>> I have a Cobra Ultralite Senior. It is approximately 105 feet up in my pine trees. When the ladder line comes down, it goes through a porcelain insulator and then through a slit of wood in the eave of the house. My grandfather believes the VSWR is affected by its contact with the wood.
>>
>> I was wondering if I should add a balun and run coax into the house instead of the feedline? Does anyone have recommendations for the Cobralite antenna balun?
>>
>> I have attached a few pictures to explain what I am writing about.
>>
>
>> Thanks.
>>
>> 73,
>> Jason
>> K1NAD
>
>

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mail.w1hh.org/pipermail/bars_w1hh.org/attachments/20220703/47eb2c4b/attachment.htm>
-------------- next part --------------
A non-text attachment was scrubbed...

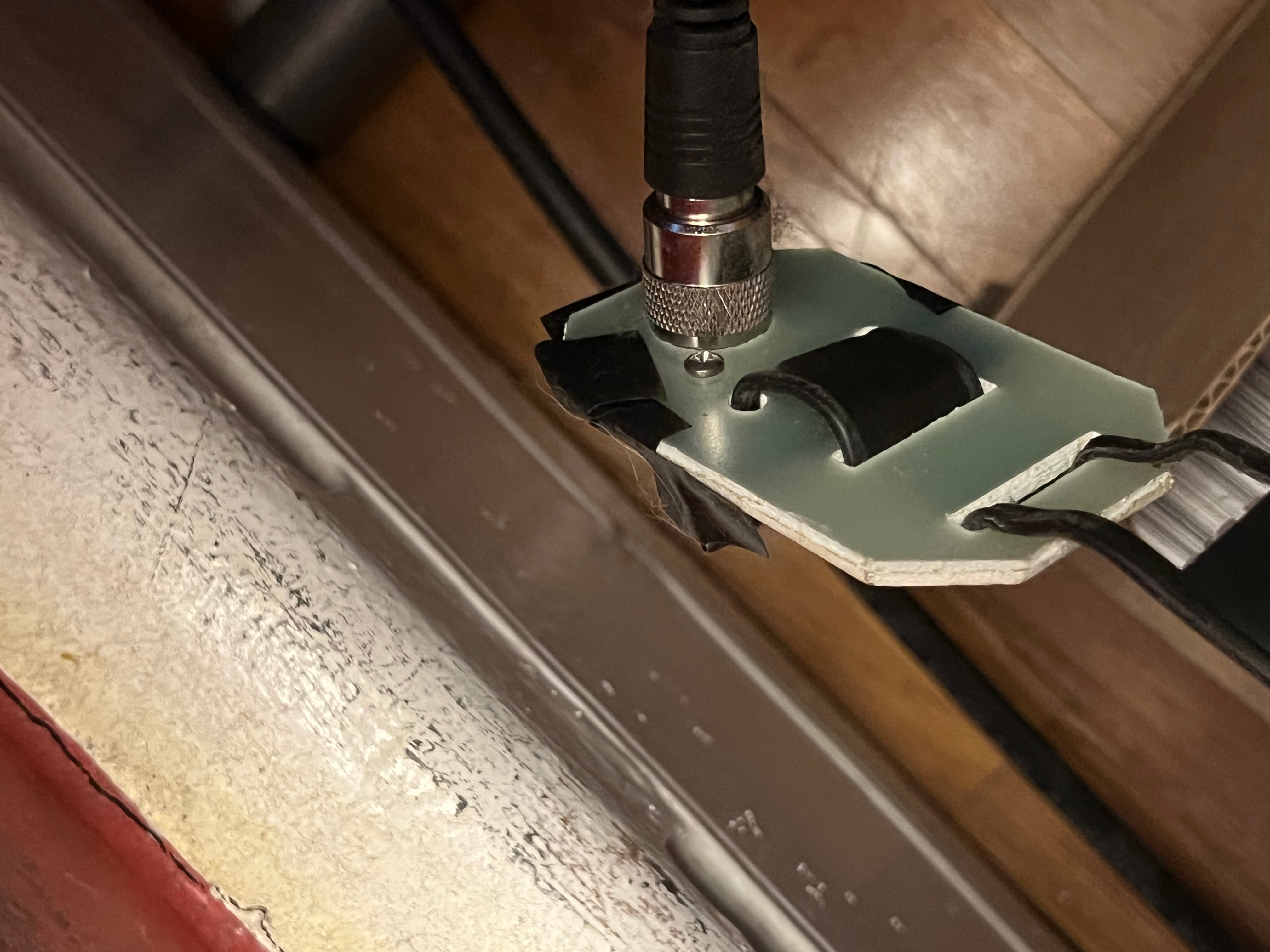

Name: balunback.jpeg
Type: image/jpeg
Size: 2305791 bytes
Desc: not available
URL: <http://mail.w1hh.org/pipermail/bars_w1hh.org/attachments/20220703/47eb2c4b/attachment.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...

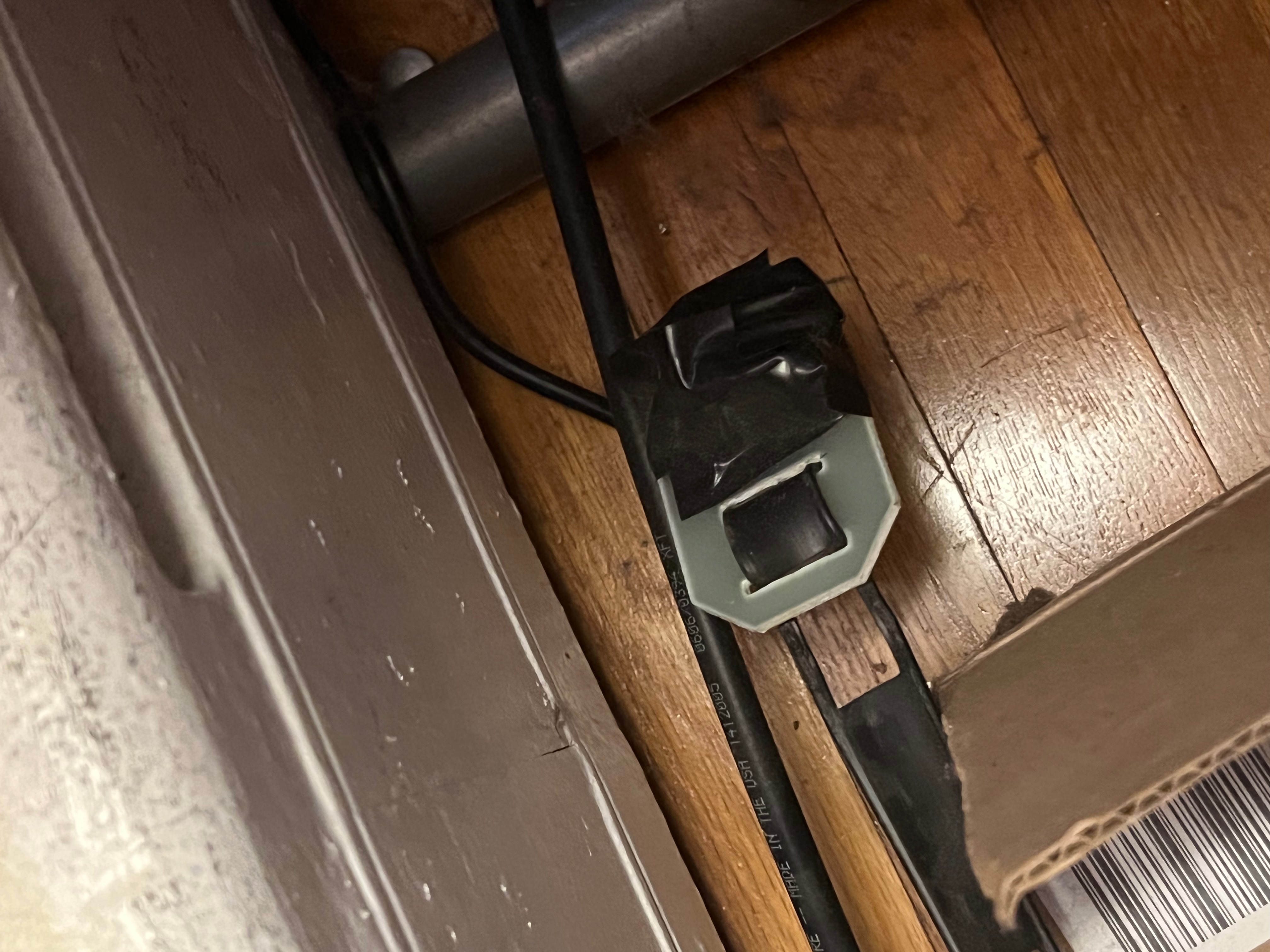

Name: balunfront.jpeg
Type: image/jpeg
Size: 2532357 bytes
Desc: not available
URL: <http://mail.w1hh.org/pipermail/bars_w1hh.org/attachments/20220703/47eb2c4b/attachment-0001.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...

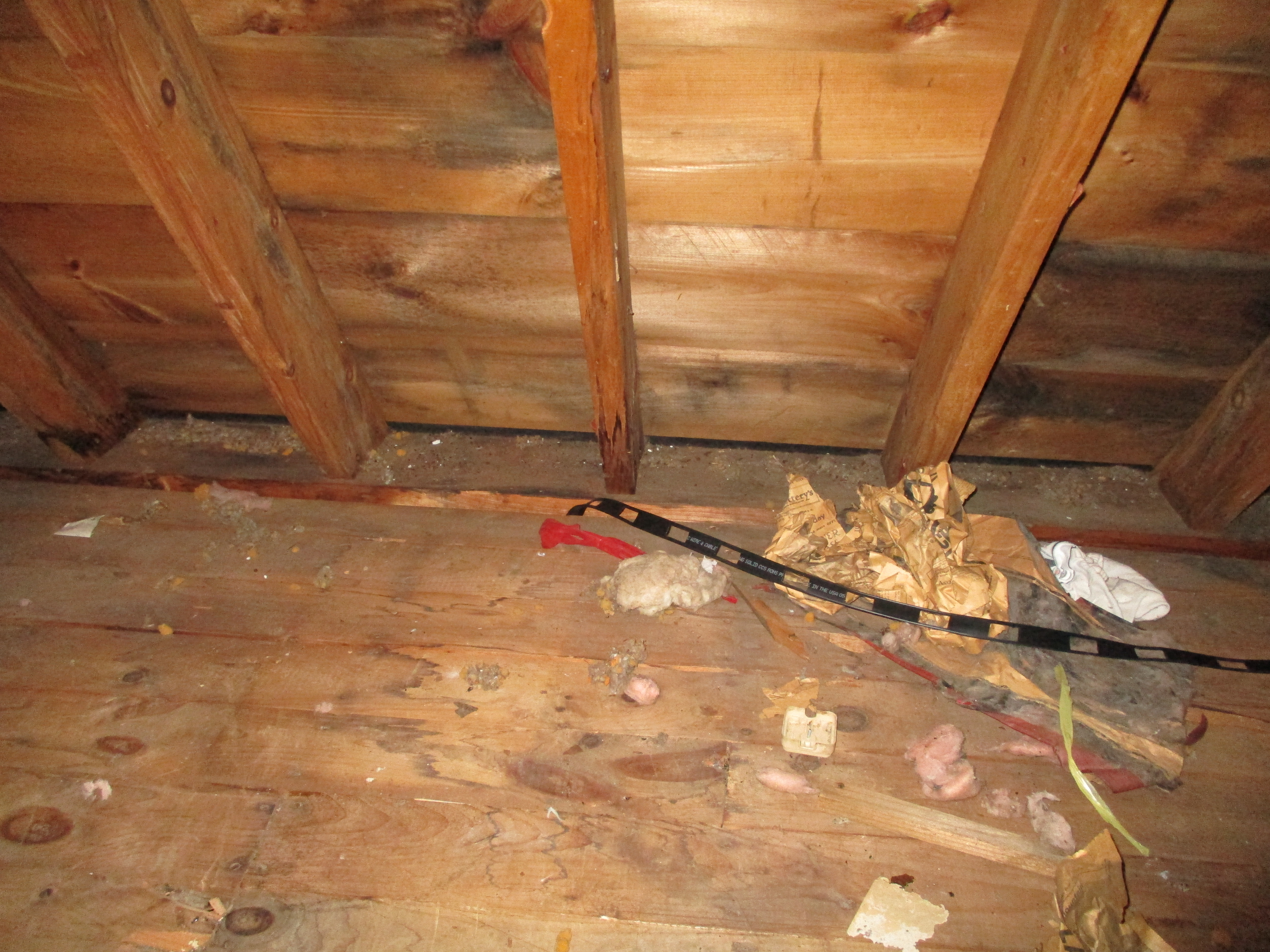

Name: comingin.JPG
Type: image/jpeg
Size: 5613879 bytes
Desc: not available
URL: <http://mail.w1hh.org/pipermail/bars_w1hh.org/attachments/20220703/47eb2c4b/attachment.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

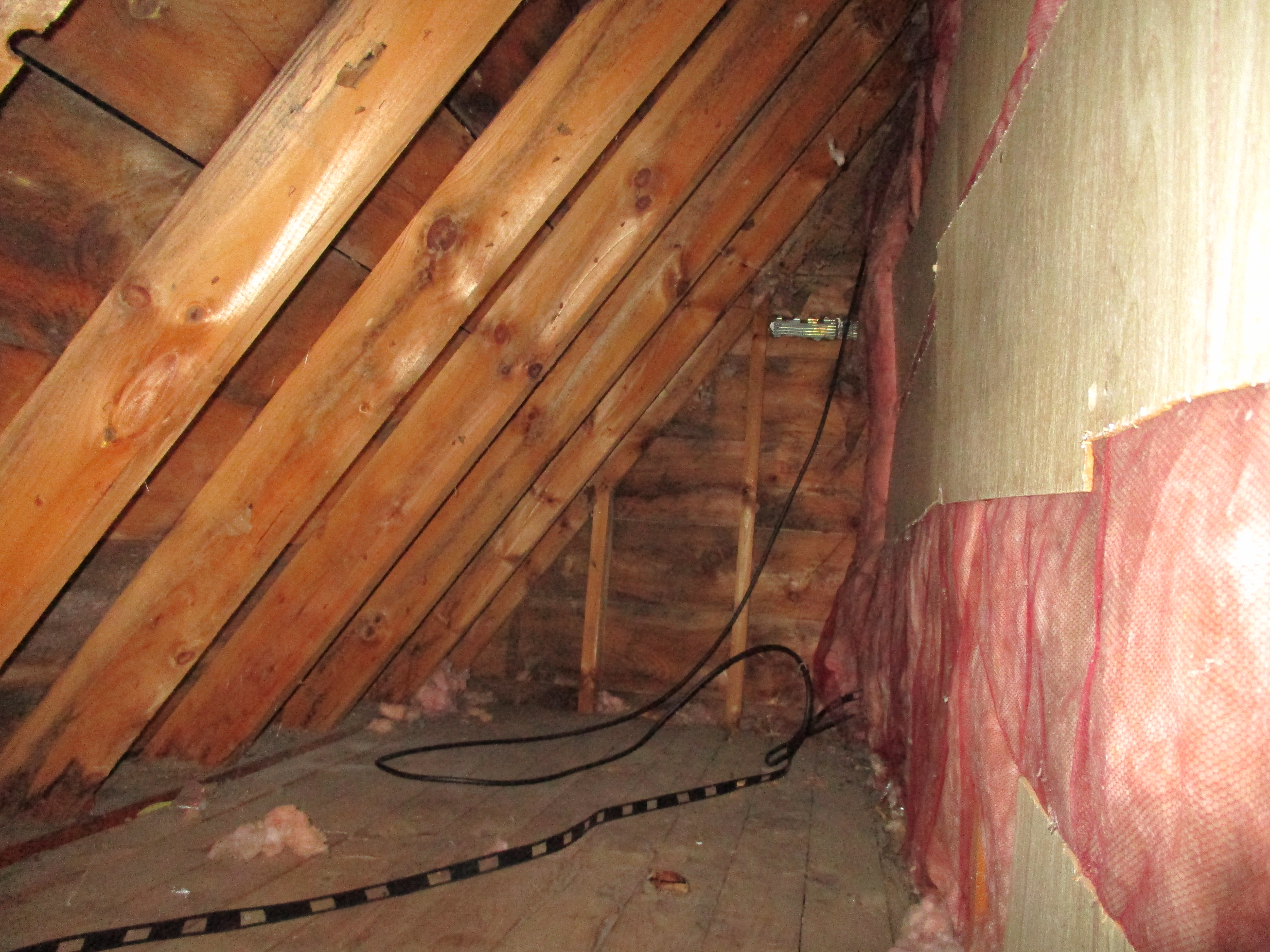

Name: cubbyhole.JPG
Type: image/jpeg
Size: 5538071 bytes
Desc: not available
URL: <http://mail.w1hh.org/pipermail/bars_w1hh.org/attachments/20220703/47eb2c4b/attachment-0001.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

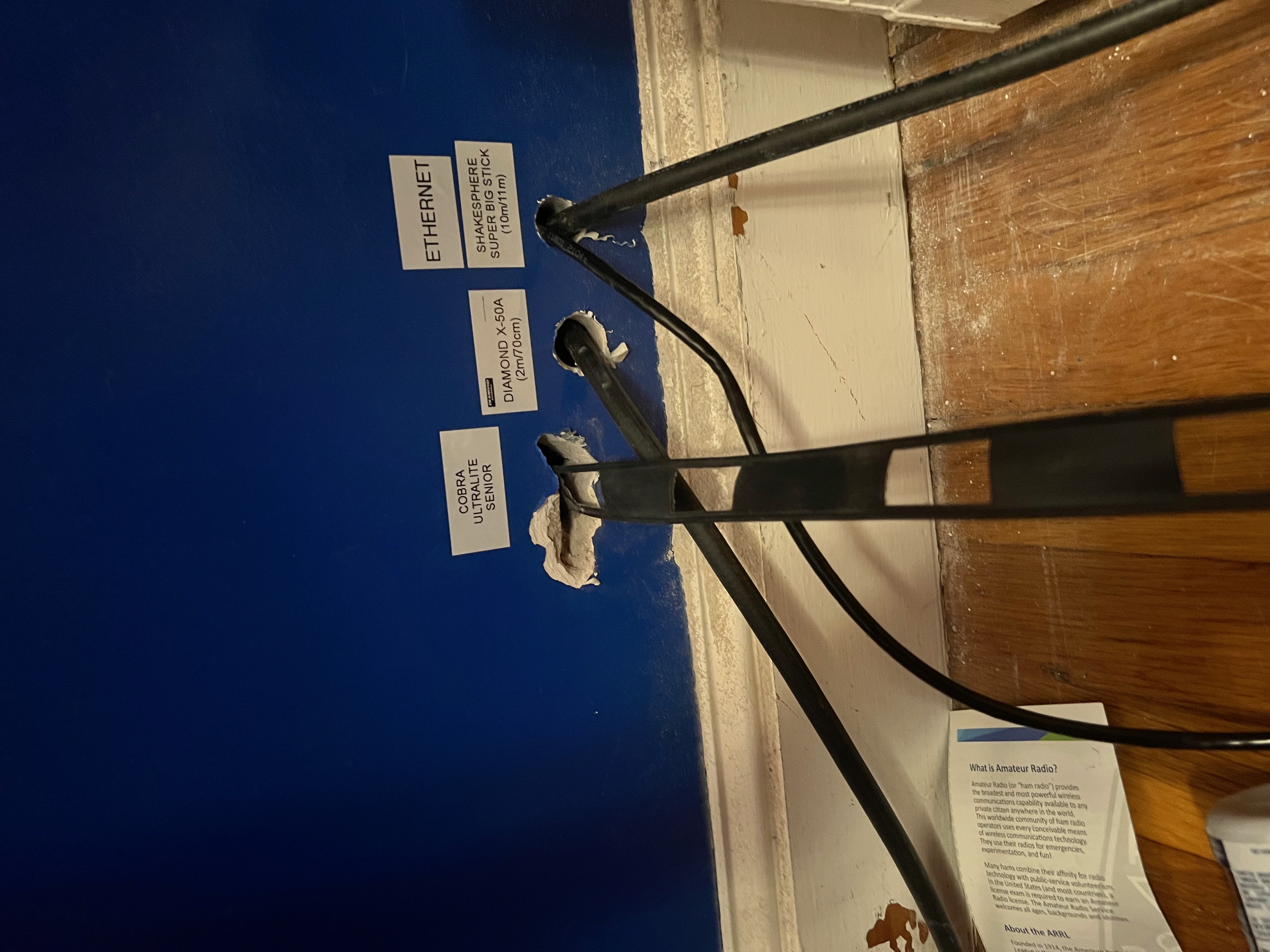

Name: wall.jpeg
