[bars] FREE 6 Meter Ground Plane antenna

[Bruce Anderson]

I recently found this tucked away in my cellar, still in the original box
I don't know what it was originally designed for
Resonance checks out at 56 MHz.
Radials are 1/4 wave long at 40 MHz
With a little tuning up, it should be good for 6 Meters
also showed low SWR on 2 meters

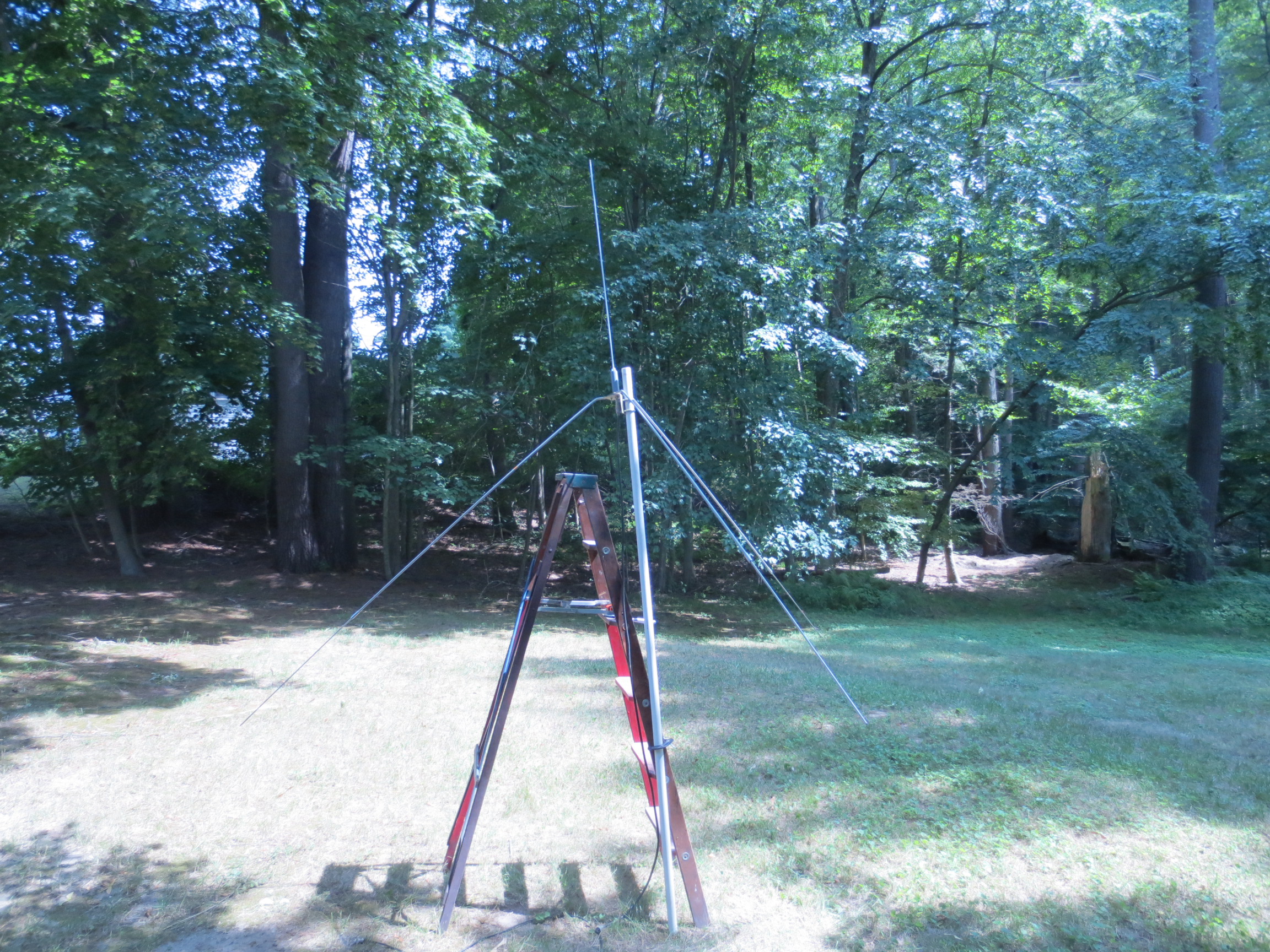

r[image: 6 M Ground Plane.JPG]

if you are interested, email me at W1LUSba at gmail.com
