Being a cheapskate I also bought the Nano VNA in preference to the Rig
Expert.

It is a general purpose Vector Network Analyzer.  It can measure the
network parameters for just the input side or by using both ports both the
input and output.  SWR can be directly computed from the return loss (S11)
in the plots.  Both can be plotted.  The complex impedance can be plotted
on a Smith chart.  You can use the Smith chart to figure out how to match
the impedance at a desired frequency.

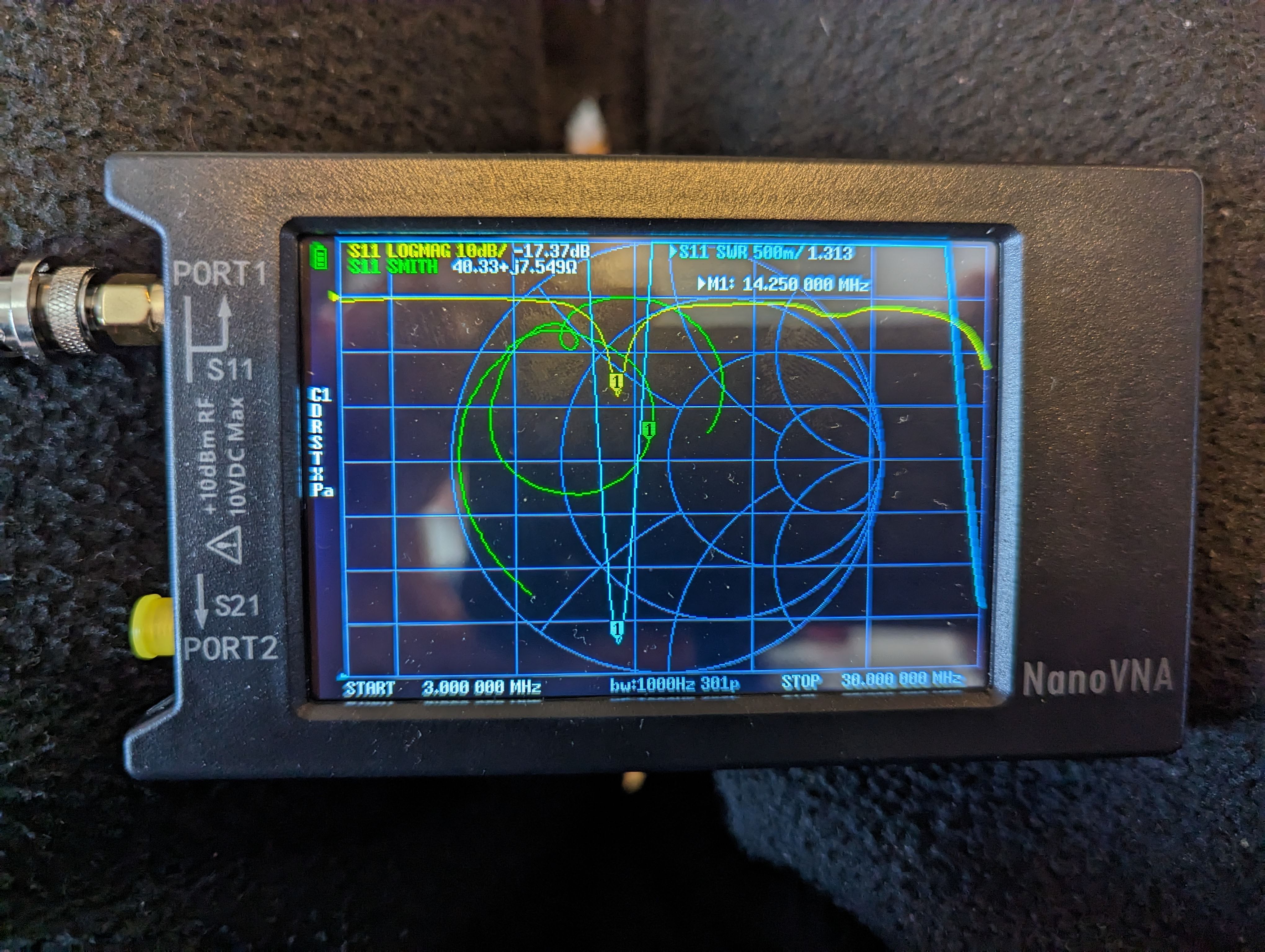

The image attached shows the end state when I was trimming an end fed half
wave antenna for the 20 m band.

It shows SWR, return loss, and complex impedance (Smith Chart) vs frequency.

It is a fun toy, but it needs to be manually calibrated each session.  If
you have an antenna analyzer that you are happy with I don't know that a
Nano VNA would add much value.

73
Chris Lennon
W2BPL
