At this point, I just using for SWR only, so I don't use for other purpose yet. Nano VNA has many other functions. people using for tune own filter, you can check cable loss, cable length and may others.

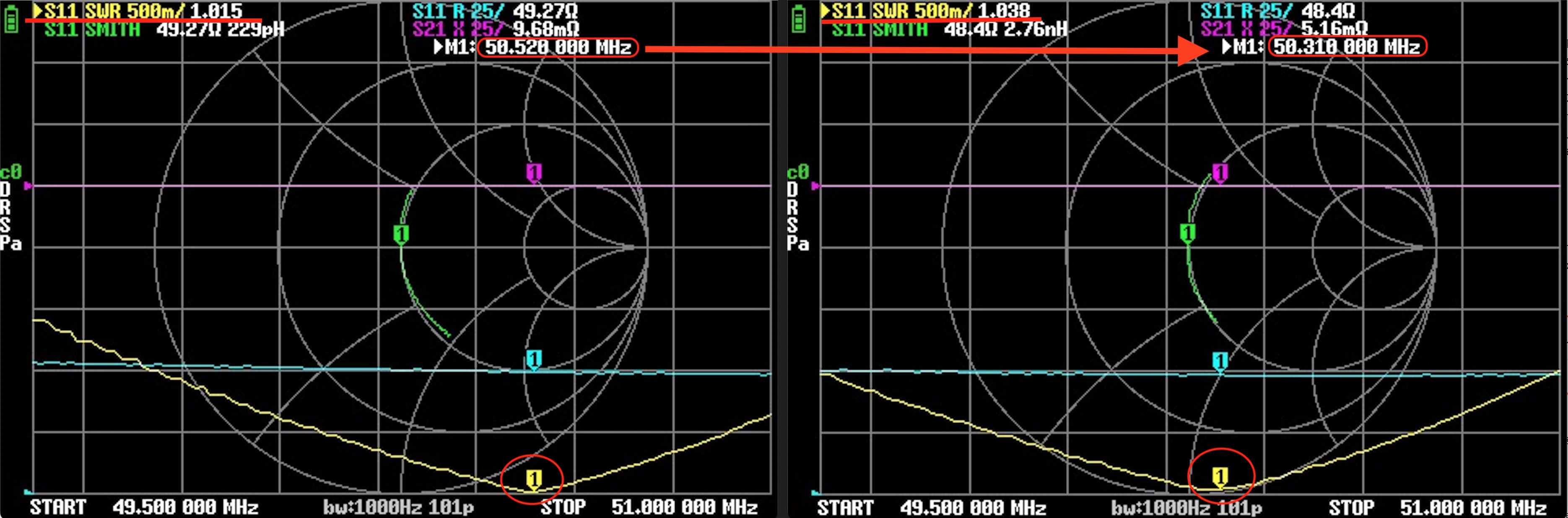

I have attached a capture of the result of a simple experiment with 6M antenna. My Nano VNA setting is yellow line is indicating SWA, green - Smith chart, The blue line - impedance (resistance), and the purple line - reactance. The band width of these images between 49.5MHz - 51.0MHz ( You can change this setting as you want ). The antenna is 1λ, so I used little more than 6m speaker cable. I made a loop using a paracord with four rings with knots the cable thru those rings, The top and bottom are about 41" width, and height is about 79". It's looks not bad as is (left side) but the lowest SWR is slightly high. If I want to make lowest peak lower, it can be changing add length, or change the ratio of loop or maybe others. If just focus the lowest part of SWR (1.0), I could change from 50.520MHz (left) to 50.310MHz (right) by changing ratio, which I used for 6m FT8 (50.313MHz). The impedance (blue line) about flat, but right side one shows slightly low (49.27Ω vs. 48.4Ω), if I want to closer to 50Ω, I maybe add width to get more closer to 50Ω, etc. I don't know other antenna analyzer, but at least Nano VNA, you can see where it changes in real time, I thought this step was fun part for me.
